Turbo Repair Kit ISUZU 4BD1T TD04HL-15G 49189-005xx

Application
- TD04- 5C, 5B, 7B, 9B, 11B, 9G, 11G, 13G, 13C, 15G

Application Detail
- BMW: 87~ 324TD/524 49177-06000, 49177-06100, 49177-06200 TD04B-11B-4; 49177-06540, 49177-06440, 49177-06422 TD04-11G
- BUKH: TD04-5B 49177-05300, 49177-05400 DV60ME
- Citroen: 90~93 XM 49177-07900
- Dodge: D-50 2.3L Pick Up 49177-01020; 88~89 Mirage 1.6L 49177-01810, 49177-01310; Stealth 49177-02410, 49177-02310,
- FIAT: 87~92 Croma 2.0L 49177-05800; Ducato 1.9LD 49177-05500.
- Hyundai: 4D56T / 2.5L 49177-07500, 49177-07501,
- Iseki Nouki : TD04L-5C / TD04S-5C 49177-03600, 49177-03500
- IVECO: DUCATO 2.8LD 49377-07070, 49377-07050; S2000 49377-07000, 49377-07010
- JCB: 4BD1-T / 4BG1-T TD04HL-15G / 49189-00511 (TD04HL-15G)
- KATO: 4D31T / HD450SE/SV/V2 49189-00800 ( TD04HL-13G)
- KUBOTA : A47G, A6T, V1502-B 49189-00900, 49177-03120, 49177-03000, 49177-03100, 49177-03110, 49177-03130
- Mitsubishi: 83~88 Colt 1.6L TD04-9B / TD04-11B 49177-01810, 49177-01310, 49177-01600; 4G6T Eagle AT 49177-01900, 49177-01901; Galant 4D65T 49177-01220, 49177-01100; 3000GT/6G72T TD04-11G 49177-02310, 49177-02410, 49177-09420, 49177-09320; 4DR6T 49177-02100; 4D31T Marooka 4SD 49189-00820; Montero/Power Ram /Shogun 49177-01010, 49177-01020; Pajero 2.3L/2.5L TD04-11G 49177-02510, 49177-02513, 49177-02503, 49177-02511, 49177-02512, 49177-01500, 49177-01501
- OPEL: Omega 2.5TD M51 / 2.5TD 49177-06420, 49177-06490
- Peugeot: 90~93 605 2.1TD 49177-07900
- Plymouth: 89~94 4G63T Talon 49177-01901.
- SAAB 9.5 / 9000 B234R 49189-01700
- VOLVO 850/S70 49189-01400, 49189-01410, 49189-01420, 49189-01430, 49189-01360, 49189-01300, 49189-013101, 49189-01310, 49189-01320, 49189-01365, 49189-01435, ; 740/460/940/960 B230FT/B200FT 49189-01000, 49189-01010, 49189-01200, 49189-01210, 49189-01260, 49189-01270,

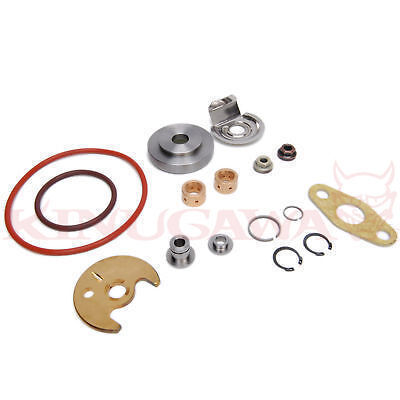

Detail
- 1 x O-Ring (C/Hsg-B/Hsg)
- 1 x O-Ring (Insert)
- 2 x Journal Bearing (Std Size)
- 2 x Snap Ring (Journal Bearing)
- 1 x Snap Ring (Insert)
- 1 x Thrust Bearing
- 1 x Thrust Ring

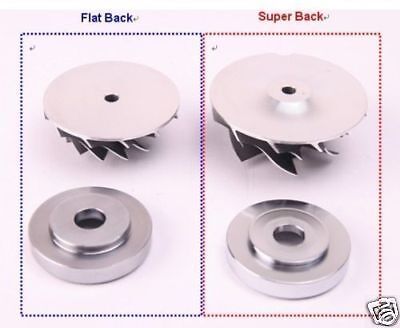

- 1 x Thrust Flinger(Flat Back/Long)
- 1 x Insert (Flat Back)
- 1 x Oil Deflector
- 1 x Piston Ring (Comp)
- 1 x Piston Ring (Turb)
- 1 x Shaft Nut (Right)
- 1 x Shaft nut (Left)
- 1 x Gasket (Oil Return)

Quantity
- 1 set

Note
- What you see is what you will get.
- Instruction will be emailed to those who request it.
