Turbo Repair Kit GM Cadillac SRX 2.8L TD04HL-15T

Application
TD04 7D, 8T, 9T, 10T, 12T, 13T, 14T, 15T, 16T, 18T, 19T turbos

Application Detail
- BMW: 94~ 525TD / 525TDS / 725TDS TD04-13T Turbo / 49177-06451, 49177-06461, 49177-06471, 49177-06481, 49177-06581, 49178-06571
- SUBARU: WRX TD04L-13T 49377-04100, 49377-04200, 49377-04300
- KUBOTA: V3300-T / TD04-12T / 49177-03130
- Mitsubishi : 2.5L/4D56T Delica / L300 49177-01515, 49177-01503, 49177-01504,
49177-01505, 49377-02002, 49377-02002, 49177-01513, 49177-02531, 49177-02530. 2.8L/4M40T : Pajero/Shogun 49377-03033, 49377-03040, 49377-03050, 49377-03053.
- Renault: elsatis/Avantime 49377-07300
- SAAB: 9.5, 9000 Aero B234R B235R, 49189-01800, 49189-01700 TD04HL-15T
- VOLVO: 850 S70 49189-01450, 49189-01455, 49189-01330, 49189-01350, 49177-01335,49189-05010, 49189-05101, 48189-05211, 49189-05310, 49189-05411, 49189-05111, 49189-05200, 49189-05100.
- S40/V40: 49377-06xxx ( TD04L-12T-8.5 & TD04L-14T-6)
-GM Cadillac SRX 2009~ 2.8L V6 TD04HL-15T

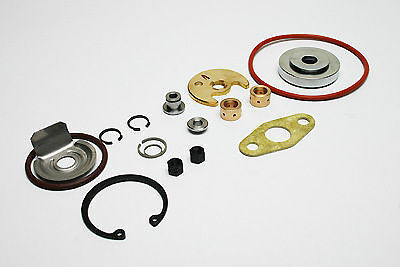

Detail
- 1 x O-ring (c/hsg-b/hsg)
- 1 x O-ring (insert)
- 2 x journal bearing (std size)
- 2 x snap ring (journal bearing)
- 1 x snap ring (insert)
- 1 x thrust bearing
- 1 x thrust ring

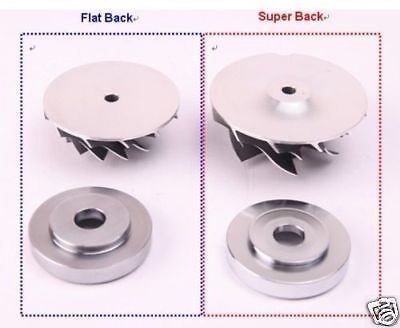

- 1 x thrust flinger (super back/short)
- 1 x insert (super back)
- 1 x oil deflector
- 1 x piston ring (comp)
- 1 x piston ring (turb)
- 1 x shaft nut (right)
- 1 x shaft nut (left)
- 1 x gasket (oil return)

Note
- What you see is what you will get.
- Instruction will be emailed to those who request it.
