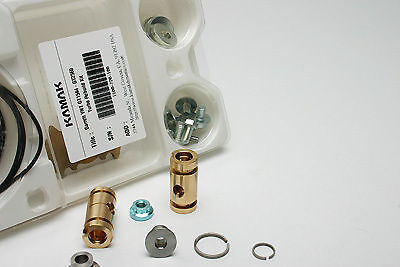

Turbo Repair Kit 02 ~ 4.2L Ford F250 6.07TCA GT GT2556S Full Kit

Replace
Replace Garrett 732252-0001 (Universal Kit)

Application
- Garrett VNT GT1544 – GT2560 Turbo ( VNT GT15 / GT17 GT18 / GT20 / GT22 / GT25 )
- VNT15,GT15,GT1541,GT1544,GT1549,GT1752S,GT1852,GT1856,GT20C,GT2052,GT2056S,GT2252S, GT2256V,GT2259,VNT25,GT2359

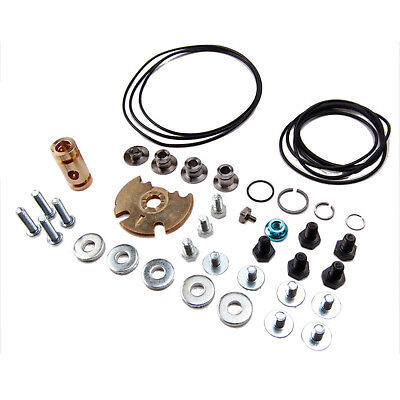

Kit Detail
1 x Journal Bearing (Slender Shaft)
1 x Journal Bearing (Straight Shaft)
1 x Spiral Snap Ring (Brg Retainer)
1 x O-Ring (Square)
1 x O-Ring ( Brg Hsg to Comp. Hsg / 82mm)
1 x O-Ring (Brg Hsg to Comp. Hsg / 88mm)
1 x O-Ring (Brg Hsg to Comp. Hsg / 95mm)
1 x O-Ring (Brg Hsg to Comp. Hsg / 108mm)
1 x O-Ring (Brg Hsg to Comp. Hsg / 114mm)
1 x Piston Ring (Turbine End)
1 x Piston Ring (Comp. 9.3mm)
1 x Piston Ring (comp. 10mm)
1 x Thrust Flinger ( Flat Back 10-Pad 9.3mm P/Ring)
1 x Thrust Flinger ( Super Back EBD 10-Pad 9.3mm P/Ring)
1 x Thrust Flinger ( 10-Pad / 10mm P/Ring)
1 x Thrust Collar (10-Pad)
1 x Anti Rotation Pin (Journal Bearing)
1 x Thrust Bearing ( New 360 Degree 10-Pad / Fit all GT15 ~ 25 application)
1 x shaft Nut (L/H)
6 x Flanged Bolt (comp. Cover)
4 x Locking Screw (S/Plate to Brg Hsg)
5 x Bolt (Turb Hsg)
5 x Clamp Washer (Turb Hsg)

Quantity
- 1 set

Note
- What you see is what you will get.
- Instruction will be emailed to those who request it.
