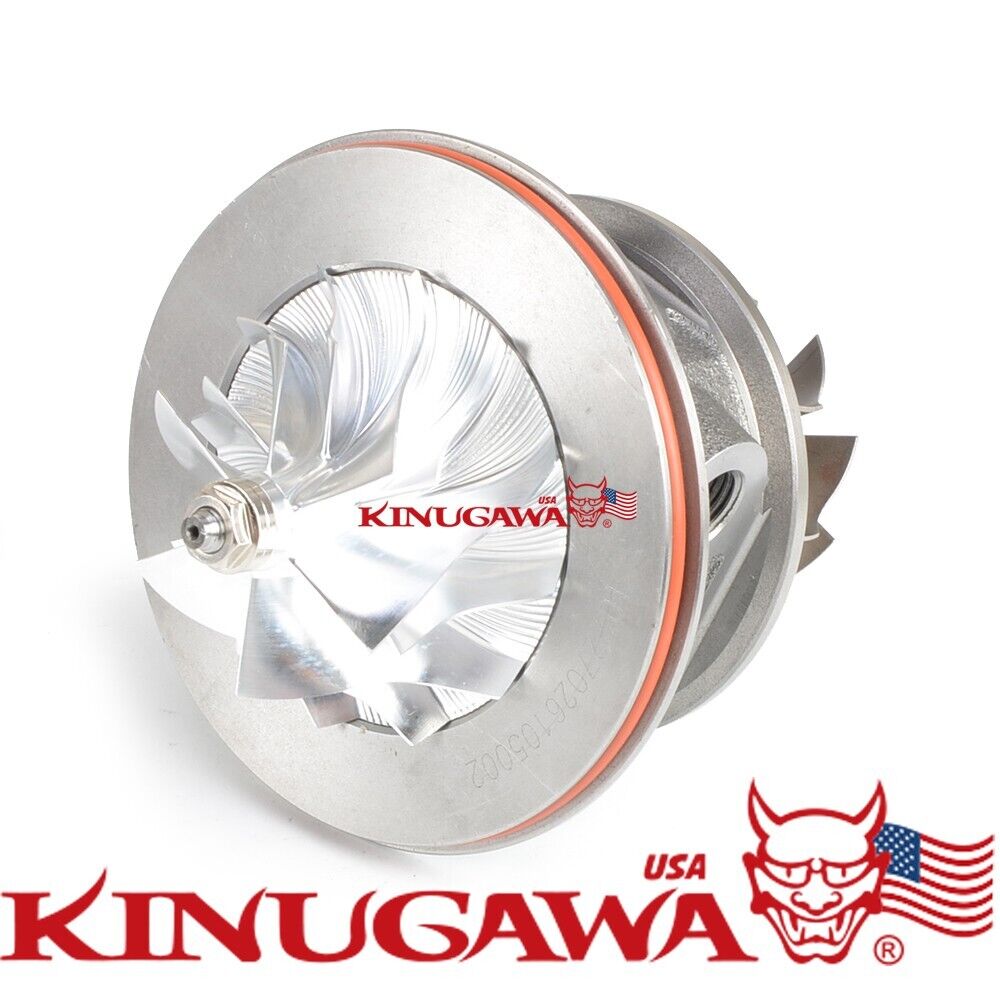

Turbo Cartridge GMC 4.3L Typhoon Syclone TD06-17C CHRA / 6+6 Billet wheel

 MHI Part Number
49179-08940

Application
1990-93 GMC Typhoon Cyclone / GMC Sonoma 4.3L, V6 w/ 49179-04000

Compressor wheel Spec
48.3 / 68 mm Inducer / Exducer Diameter ( 6+6 Blades billet wheel)

Turbine Wheel Spec
55.3 / 65 mm Inducer / Exducer Diameter ( 12 Blade TBW)

Thrust Bearing System
Performance Thrust Bearing system
(Double Oil feed hole with larger thrust ring and flinger)

Cooling System
Water cooled

Kit includes
- TD06-17C CHRA
- 1 x Oil feed bolt kit
- 1 x Oil drain pipe kit
Comes with all parts shown

Condition
Brand new
