Kinugawa Turbocharger TD04L-13T w/ 5cm T25 Housing / 1.3~2L / 150~250HP

Application
1.3~2L engine / 150~ 250 HP

Wheel Spec.
-Compressor wheel : 40.3 / 56 mm (TD04-13T)
-Turbine Wheel: 41.3 / 47 mm ( TD04L / 11 blade High Flow Wheel)

Turbine Housing
Nozzle Area : 5 cm^2
Turbine Inlet : T25

Bearing System
Journal Bearing / Performance Thrust Bearing Kit

Cooling System
Oil & Water-cooled system　

Kit includes
- 1 x 70cm 4AN (1/4” Teflon Hose) Oil Feed Line with 1/8 NPT Tee Fitting
- 2 x 24cm 4AN (5/16” Teflon Hose) Water line Kit
- 1 x Oil Return Pipe kit
- 1 x T25 stainless gasket (Multi-Layer)
- 1 x Turbine Outlet Gasket ( 4 layers of steel gasket)
- 1 x Turbine Outlet Flange (Major Hole :1.75” / Second Hole ID: 1”)
- 6 x M8x1.25mm Stud Kit

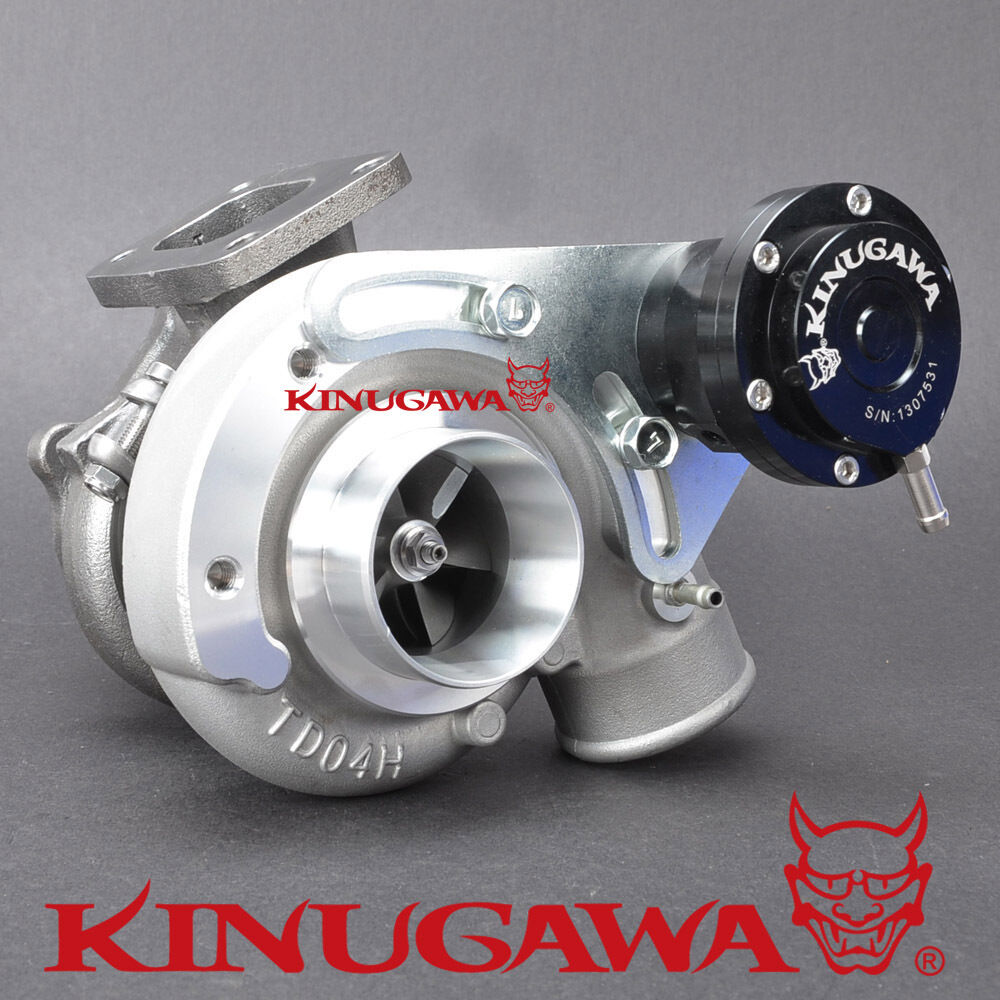

- Everything shown on first picture
