Kinugawa Billet Turbocharger 3" Non Anti-Surge TD06SL2-20G 10cm /T3 Oil-Cooled

Application
- Universal type
- 1800~2500cc

Wheel Spec.
Compressor wheel: 52.5 / 68 mm (20G Billet Wheel)
Turbine wheel: 54.1/61 mm(TD06SL2 / 11 Blades Inconel Wheel)

Compressor Housing
- A/R 60
- Compressor inlet : 76mm / 3”
- Compressor outlet : 51mm / 2”

Turbine Housing
- 10cm / AR73 / T3 flanged / external gated turbine housing

Bearing System
Journal bearing / performance thrust bearing kit

Cooling System
Oil cooled system　

Max HP
- 350~500 HP

Boost Limit
- 2.8 bar (based on performance bearing kit with larger thrust bearing )

Suggested Limit
- 1.5 bar / 22 Psi

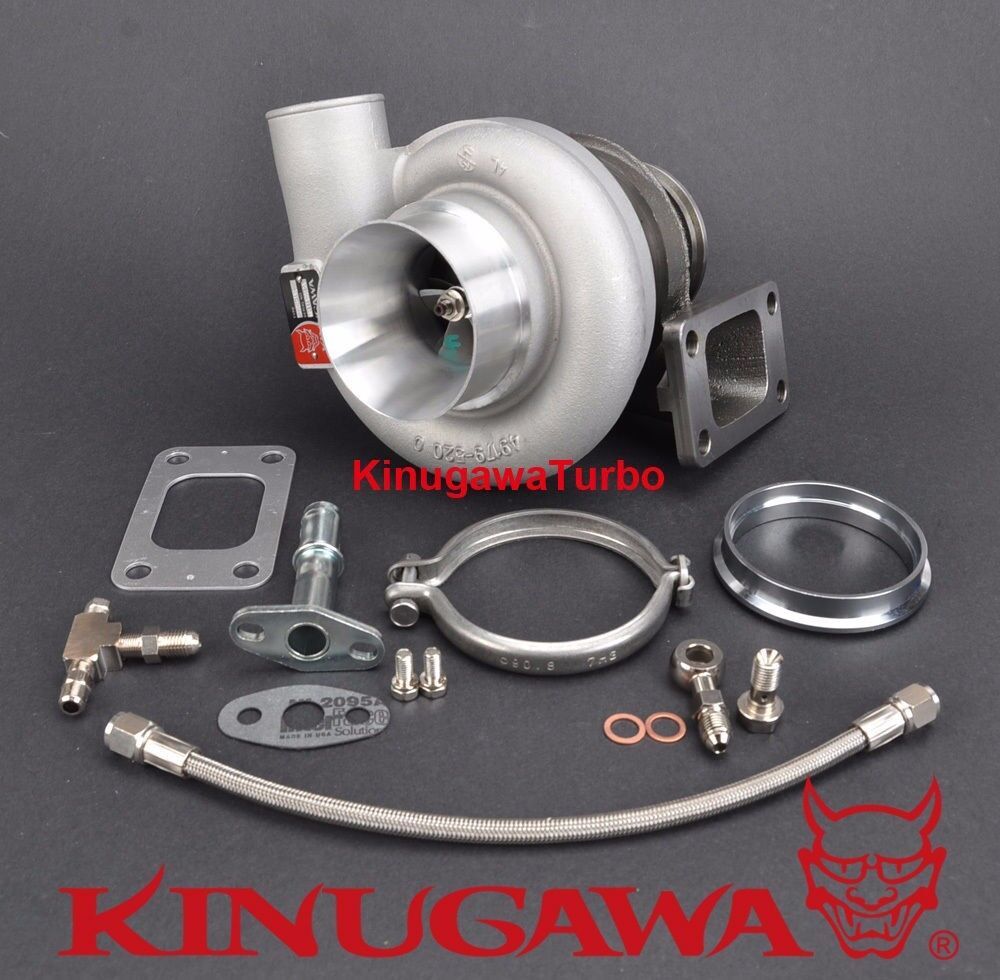

Kit includes
1 x Oil feed line kit ( 70cm Braided Line )
1 x Oil drain pipe kit
1 x T3 turbine inlet gasket
2 x 20cm 6AN water line kit
1 x V-band pipe adapter
(Comes with everything shown)
- 1.0 bar / 15 psi spring preinstalled
- Actuator can be easily rotated 360 degrees

Warranty
ONE YEAR WARRANTY
