Kinugawa Ball Bearing Turbo 3" Anti Surge For SUBARU WRX STI TD06H-25G 8cm

Application
98~08 EJ20 EJ25 SUBARU IMPREZA WRX / 08~2013 SUBARU STI
It can replace TD04L, RHF5HB VF23 VF22 VF34, RHF55 VF29, VF30, VF35, VF41, VF43, VF47, VF48, VF49 WRX STI. 3" Intake silicon hose is needed when you install this 3" turbocharger.

Wheel Spec.
- Compressor wheel: 60.5 / 78 mm (25G 6+6 Billet Wheel)
- Turbine wheel: 58.8 / 67.2 mm (TD06H / 9 Blades High Flow Inconel Wheel)

Compressor Housing
3" Anti-surge

Turbine Housing
8 cm^2 Ported Turbine Housing Larger Turbine Flapper

Bearing System
Dual Ceramic Ball Bearing System

Cooling System
Oil & Water cooled system　

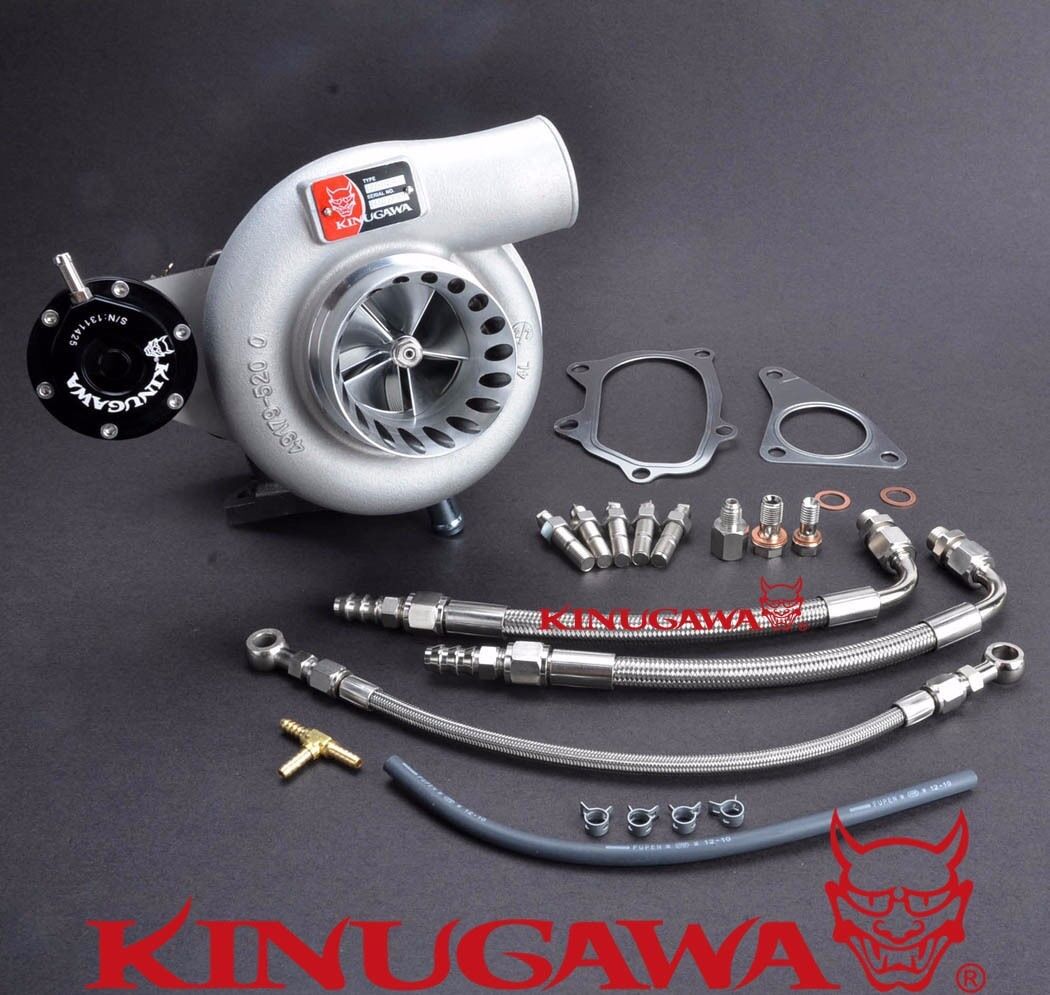

(Everything shown on picture included)

- 1.0 Bar / 15 psi spring installed.
- 0.5Bar, 0.8Bar, 1.0Bar, 1.2Bar, 1.5bar, 1.7bar and 2.0bar spring are available on our shop, we will combine shipping when we receive the order.
- Actuator position can be 360 Degree rotated easily.

Made by
Kinugawa Turbo

ONE YEAR WARRANTY
